## 1. Project Overview
This demonstration shows a technique for soldering heavy-gauge stranded wire onto an XT90 battery connector terminal. High-current connectors require efficient heat delivery to ensure solid solder flow without overheating the plastic housing.
## 2. Tools & Machinery Used
– High-current XT90 connector
– Pre-tinned heavy-gauge copper wiring
– Specialized heating element/soldering jig
– Solder wire with rosin core
## 3. Step-by-Step Process

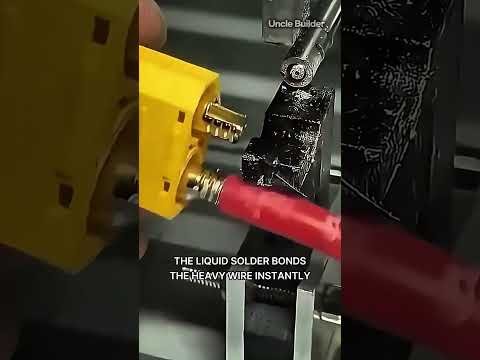

1. The connector terminal is positioned against a concentrated heat source.
2. The pre-tinned wire is inserted into the heated cup terminal.
3. Heat melts the solder inside the cup, creating a solid metal bond around the wire strands.
4. The process is repeated for the opposite terminal post.
## 4. Why This Works
Direct heat application quickly raises the temperature of both the terminal cup and the heavy copper conductor. This allows the pre-applied solder to liquefy uniformly and form a reliable low-resistance electrical connection.
## 5. Educational Purpose & Safety Notes
Understanding thermal mass transfer helps prevent cold solder joints in electrical connections. Always work in a well-ventilated area, wear safety glasses, and ensure proper insulation sleeves are applied over high-current connectors.
